- PIR Motion Detector

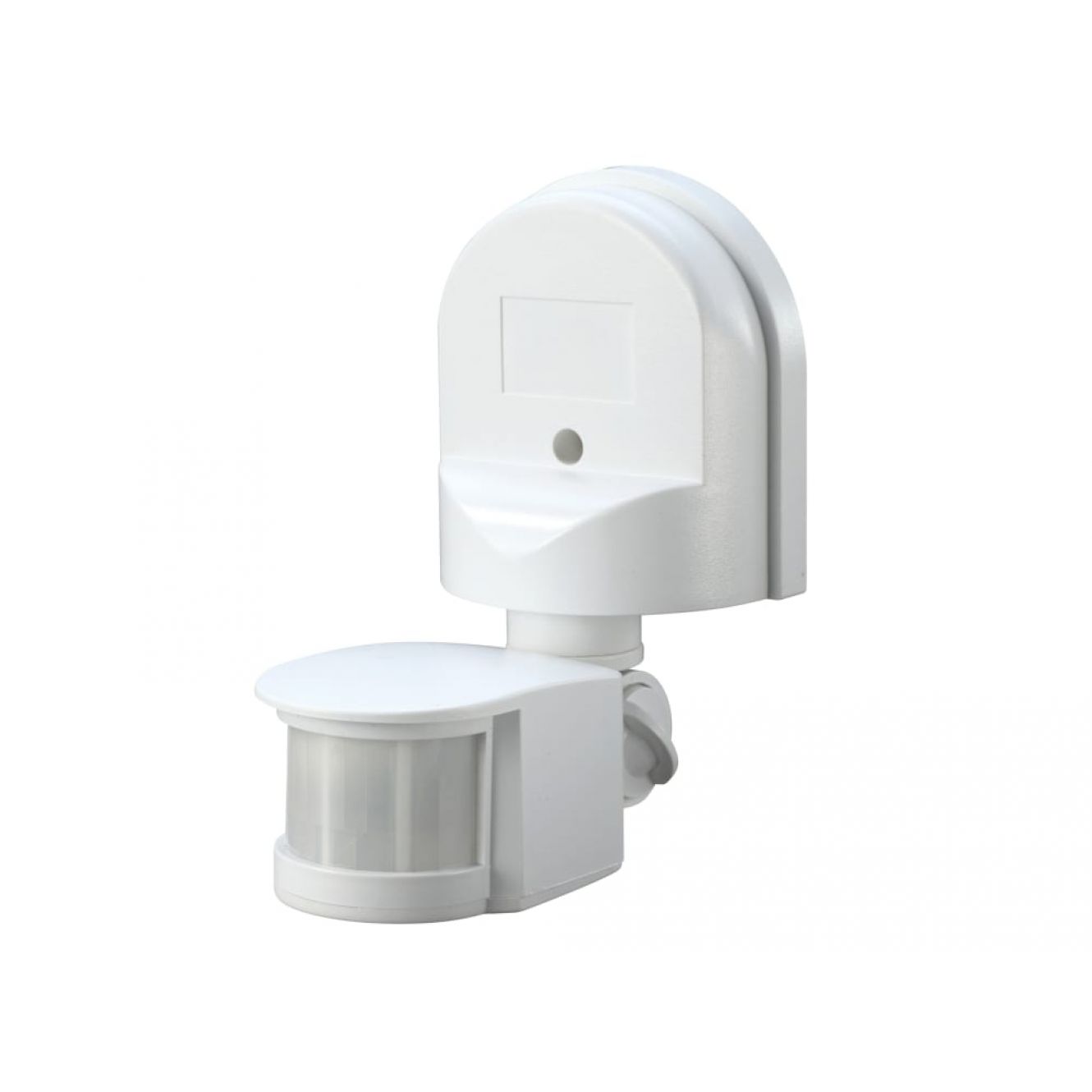

Meridian LightingPIR Motion Detector
The Meridian PIR Motion Detector switches on wired lights automatically when the detection area is entered. It has a 180° 12m detection area. Adjustable timer between 10 seconds and 7 minutes. It also features an adjustable LUX level.
A corner wall mount is also included for easy corner mounting if required. Suitable for outdoor and indoor use offering weather protection to IP44.
Specification:
Power Source: 220-240V - 50/60Hz
Wattage: 0.5W
Detection Distance: 5-12m
Detection Range: 180°
Time Delay: 10 sec. to 7min.
Ambient Light: <3-2000 LUX (adjustable)
Installation Height: 1.8-2.5m
Ingress Protection: IP44
Dimensions: 78 x 28 x 120mm
The Meridian PIR Motion Detector switches on wired lights automatically when the detection area is entered. It has a 180° 12m detection area. Adjustable timer between 10 seconds and 7 minutes. It also features an adjustable LUX level.
A corner wall mount is also included for easy corner mounting if required. Suitable for outdoor and indoor use offering weather protection to IP44.
Specification:
Power Source: 220-240V - 50/60Hz
Wattage: 0.5W
Detection Distance: 5-12m
Detection Range: 180°
Time Delay: 10 sec. to 7min.
Ambient Light: <3-2000 LUX (adjustable)
Installation Height: 1.8-2.5m
Ingress Protection: IP44
Dimensions: 78 x 28 x 120mm
