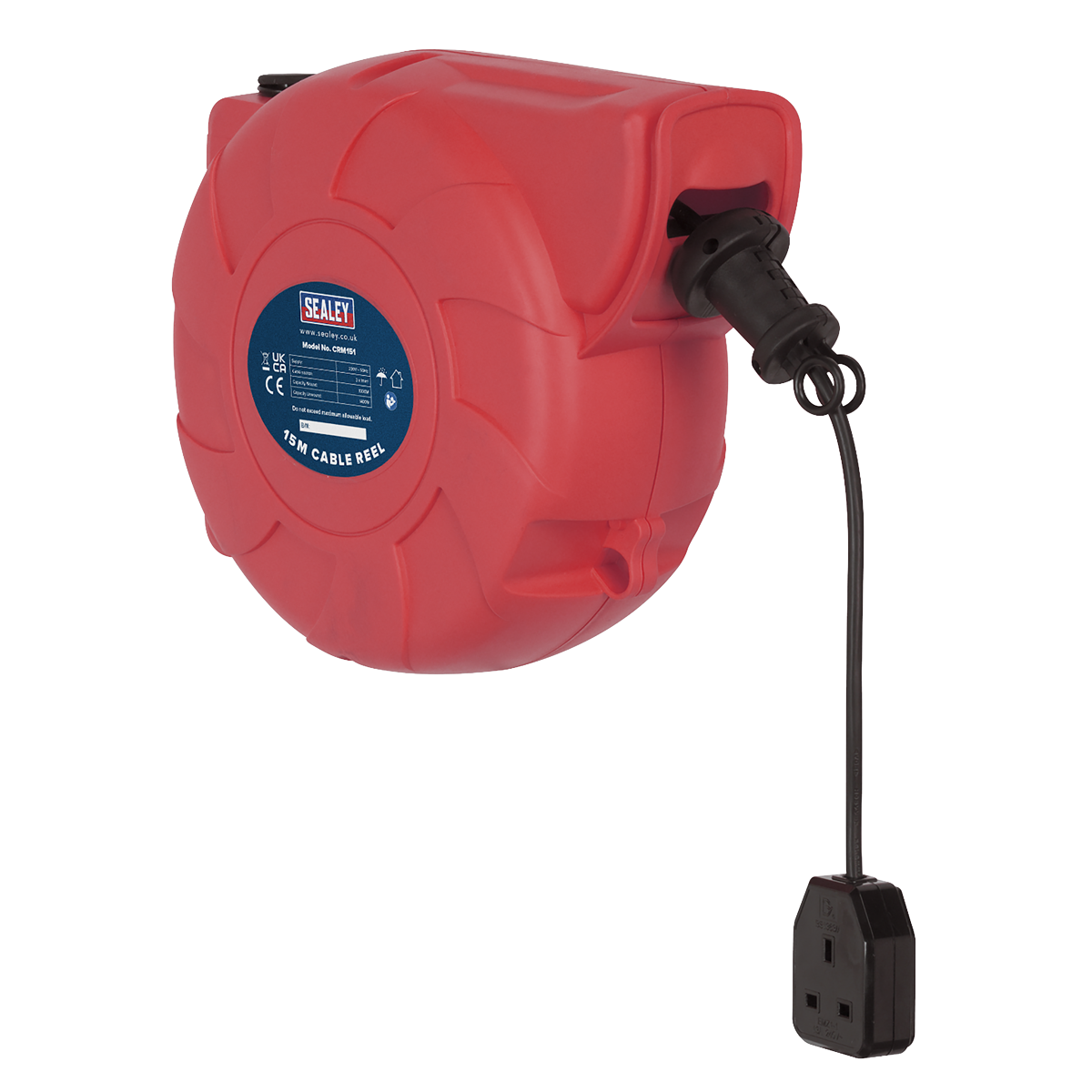

- Cable Reel System Retractable 15m 1 x 230V Socket CRM151
Sealey ToolsCable Reel System Retractable 15m 1 x 230V Socket CRM151
The CRM151 retractable cable reel from UKToolbox is a fantastic addition to any workshop or garage where 240v power is occasionally required.
Wall mounted; this extension lead is automatically stowed away after use to prevent trip hazards around the work place, providing greater health and safety compliance.
It is constructed using a durable composite housing which is operated by simple pull and release action. This cable reel also features an integral manual thermal switch to prevent overload and an LED power indicator. Supplied with single socket outlet.
Mounting instructions
- Fix the cable reel in an appropriate position, ensuring that the wall and the mounting bolts will adequately support the weight of the reel and the tension of the cable, as it is pulled from the reel.
- Using the bracket as a template, mark the position, on the wall where the cable reel is to be mounted, for two holes. Drill two 10mm diameter holes in the wall of sufficient depth to take the masonry bolts supplied.
- Insert the two masonry bolts into the holes and mount the bracket onto the studs and loosely secure with the flat washers, spring washers and the nuts supplied. Tighten the nuts evenly until the bracket and reel are secure.
- Ensure that the cable can be pulled out to, and reeled back from, working areas without rubbing on the sides of the cable entry.
Safe operation
- Extending the cable. As the cable is pulled out from the reel, the action of the ratchet mechanism can be heard alternating between a clicking sound and a short silent period. If the tension on the cable is released whilst the ratchet is clicking, the cable will remain extended.
- If the tension on the cable is released during the silent period, the cable will retract. To stop the cable retracting, pull it out again until the ratchet starts clicking, and then release it.
- Retracting the cable. To release the cable and allow it to automatically rewind, pull the cable out from the locked position until the clicking stops and then release the tension on the cable. DO NOT let go of the cable. Simply guide it back smoothly until the socket is back in the reel. WARNING! The reel tension is factory set, if any adjustment is required, contact an authorised service agent. DO NOT remove any of the cover screws.
- Thermal cut-out. In the event of the reel being overloaded, the cut-out switch will trip. If this occurs, disconnect the reel from the supply and then determine and rectify the cause of the overload. Reconnect to the supply and press the cut-out reset button - after allowing two to three minutes for cooling down.
Specification
- Model no: CRM151
- Supply: 230V
- Cable length: 10mtr/15mtr
- Cable section: 3 x 1mm²
- Thermal trip: Yes
- Capacity wound: 1000W
- Capacity unwound: 1400W
If you need further help or advice please contact us.
